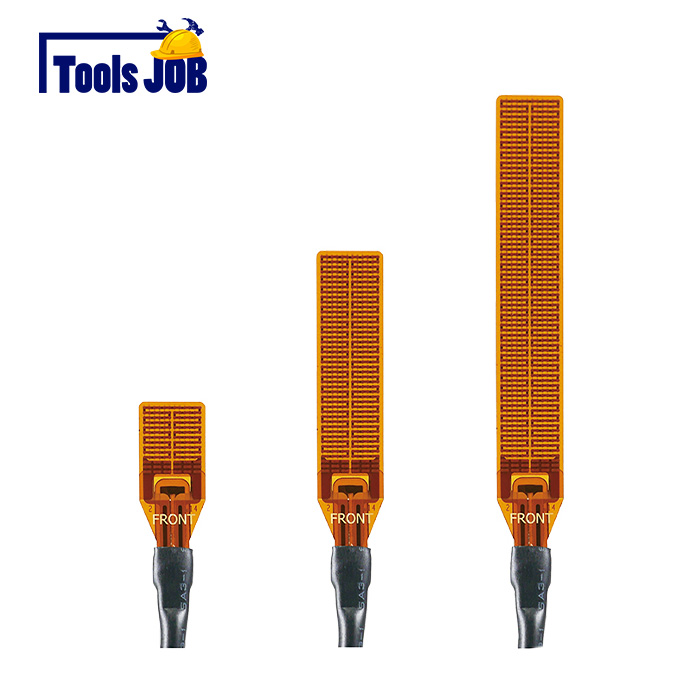

سنسور جریان حرارتی هیوکی مدل Z2012-01 to Z2017-01

Z2018

Z2017

Z2014

Z2016

Z2013

Z2015

Z2012

Models

SS size, 1.5 m (4.92 ft) length

L size, 5 m (16.41 ft) length

L size, 1.5 m (4.92 ft) length

M size, 5 m (16.41 ft) length

M size, 1.5 m (4.92 ft) length

S size, 5 m (16.41 ft) length

S size, 1.5 m (4.92 ft) length

size

0.003 mV/W•m ^-2

0.08 mV/W•m -2

0.04 mV/W•m ^-2

0.01 mV/W•m -2

Typical sensitivity

Sensor part : -40 °C to 150 °C(-40.0 °F to 302.0 °F),

Cable part: -40 °C to 120 °C (-40.0 °F to 248.0 °F)

Operating temperature

IP06, IP07 (EN60529)

Waterproof protection

3 Ω to 500 Ω

3 Ω to 1500 Ω

3 Ω to 1000 Ω

3 Ω to 500 Ω

Internal resistance (including cable)

30 mm (1.18 in)

Min. curvature radius

4 MPa

Compression strength

1.3 × 10 ^-3 (m ^2·K/W)

1.3 × 10 -3 (m 2·K/W)

Thermal resistance

±2 %

Repeatable precision

W: 5.5 mm (0.22 in)

W: 10 mm (0.39 in)

Sensor part dimensions

L: 6.0 mm (0.24 in)

L: 54.1 mm (2.13 in)

L: 31.6 mm (1.24 in)

L: 9.1 mm (0.36 in)

t: 0.25 mm (0.01 in)

t: 0.25 mm (0.01 in)

1.5 m (4.92 ft) (Z2012-01, Z2013-01, Z2014-01)
5 m (16.41 ft) (Z2015-01, Z2016-01, Z2017-01)

Cable length
